Haltech Stand Alone IC-7 Colour Dash "Classic" Install kit - CAN Size: 7in

Haltech Stand Alone IC-7 Colour Dash "Classic" Install kit - CAN Size: 7in

$1,983.00 USD
$1,983.00 USD
Sale Sold out

DASH OVERVIEW

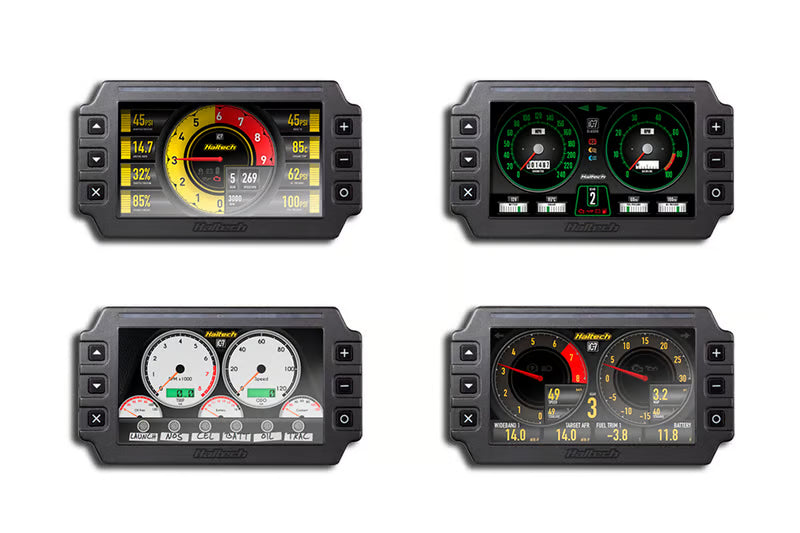

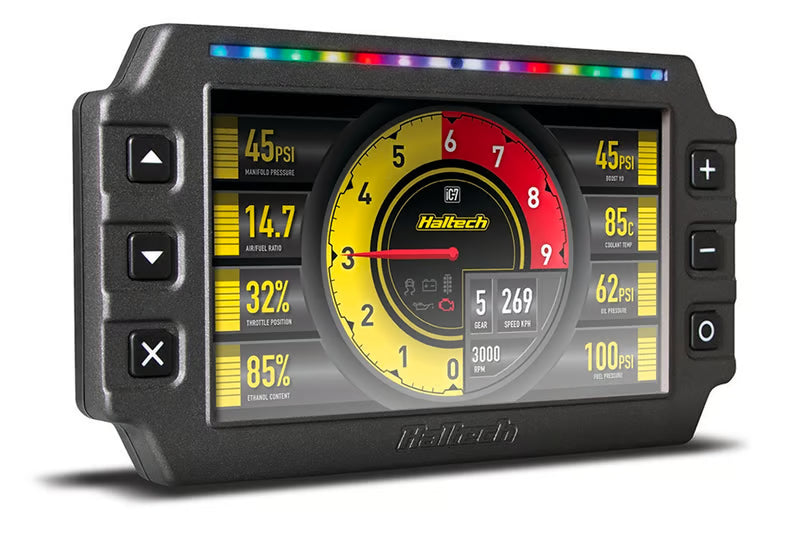

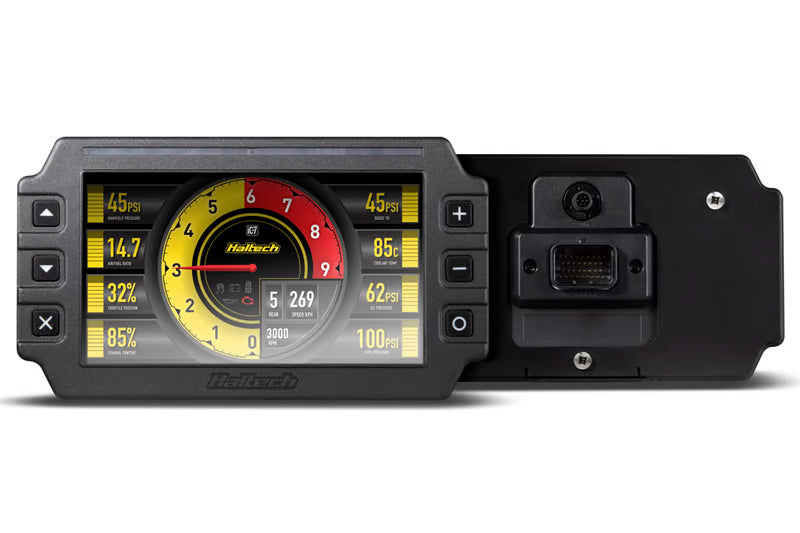

With a crisp, clear and full colour display, the all new Haltech iC-7 Display Dash lets you see things in a brand new way.

DesIgnitioned and manufactured in Australia with motoring enthusiasts in mind, the iC-7 offers market-leading features in a unique, state-of-the-art package.

Featuring custom screen displays,I/O sharing (for Haltech Elite & Nexus ECU's only), datalogging, auto-dimming ambient light reactive brightness, user-programmable multi-colour shift light bar, the iC-7 connects directly to all current Haltech ECUs via a CAN network.

Ideal replacement for individual analogue gauge clusters.

Easy to install and configure.

User adjustable brightness control with automatic dimming.

User configurable channels, units and alarms.

User definable Inputs & Outputs

9 x Analog Voltage Inputs (AVI)

3 x Digital Pulsed Inputs (DPI)

1 x Tachometer input

4 x Digital Pulsed Outputs (DPO)

14 programmable, seven colour shift light LEDs.

On-board datalogging (512MB)

Controlled via easily accessible, face-mounted control buttons.

Configuration via Haltech software and USB cable.

IP64 (Dust-tight and protected against water splashes).

Coolant Temperature Sensor - 1/8 NPT Thread
Please take care when wiring this sensor as incorrect wiring will damage this sensor!

All "TI " MAP and Pressure sensors are individually electronically tested before packaging and are sold "as is" and without any further warranty.
Returns of opened sensors are not accepted. If you do not accept these terms and conditions please return the unopened sensor in its original packaging for a full refund.

Adaptor - Brass 1/8"NPTF to 3/8"NPTF

Quick and easy installation of the Haltech iC-7 dash into a Non-EFI Vehicle

Suits: Perfect for old-school hot rods, mechanically injected muscle, carbureted classics and everything in between, the Haltech stand-alone IC-7 Classic kit is ideal for anyone looking to simplify and modernise their analogue gauge setup. Suits carbureted or mechanically injected vehicles and/or vehicles without an ECU.

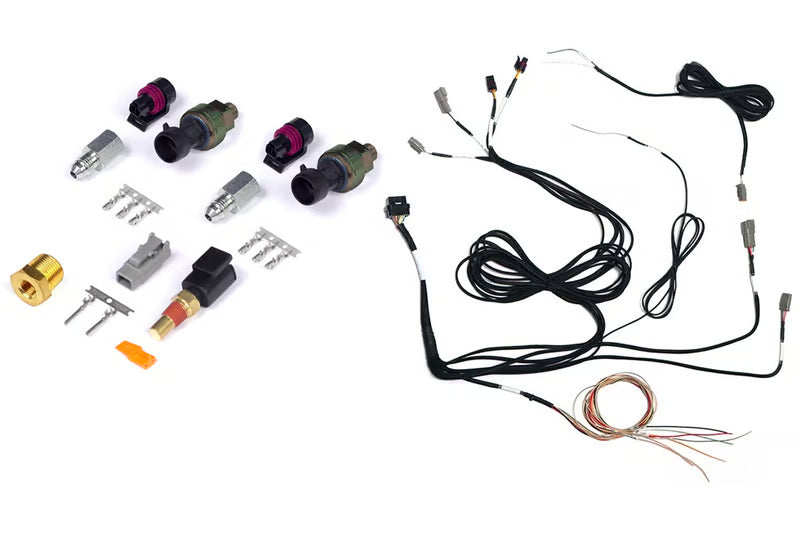

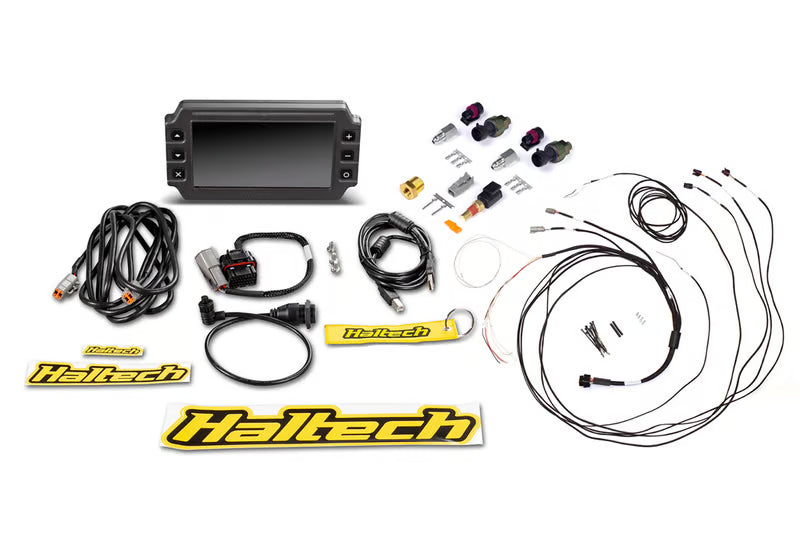

Includes: 1 x Haltech iC-7 Dash, 1 x 34 Pin main connector harness, 1 x DTM-4 to DTM-4 CAN cable 3.0m (118in), 1 x USB to M5 right angle cable, 1 x USB Cable, 1 x iC-7 Semi Terminated Harness, 1 x 1/8 NPT Coolant Temperature Sensor, 2 x 0-150 Psi Fuel/Oil Pressure Sensors, 1 x 3/8NPTF to 1/8NPTF Adaptor.

SKU: HT-067014
